Manifold Flexible Heaters

ARIHANT Manifold Flexible Heaters are advanced, user-formable heating solutions designed to provide exceptional application flexibility, rapid heat transfer, and uniform temperature distribution in hot runner systems, molds, dies, and manifold heating applications. Manufactured with a robust flexible metal sheath and high thermal mass construction, these heaters can be manually formed to fit complex grooves and contours while maintaining excellent contact with the heated surface. Their compression-fit design ensures superior conductivity, faster heat-up times, reduced energy consumption, and consistent thermal performance. Available in multiple diameters, wattages, and custom lengths, Manifold Flexible Heaters offer easy installation, reliable operation, and long service.

550°C Maximum Temperature
480V Maximum Voltage
7 W/mm² Max Watt Density
CE Certified Product

ARIHANT Manifold Flexible Heaters are advanced user-formable heating solutions designed for hot runner systems, mould heating applications, and complex thermal control requirements. Their unique three-dimensional bendability allows engineers and designers to create highly efficient heating layouts while maintaining excellent heat transfer performance. Manufactured with a robust flexible metal sheath and increased thermal mass, these heaters compress securely into machined grooves, ensuring superior thermal conductivity and uniform temperature distribution. Easy hand-forming capability, rapid heat-up response, reduced energy consumption, and simplified installation make them an ideal solution for injection moulding.

Flexible Construction

Three-dimensional bendability enables easy adaptation to complex groove layouts and mould geometries.

Superior Heat Transfer

Compresses firmly into the groove ensuring excellent thermal conductivity.

Rapid Heat-Up

Faster temperature response helps improve productivity and process efficiency.

Can Be Formed By Hand
Easy Installation
Rapid Heat-Up Times
Excellent Heat Transfer
Minimal Temperature Loss
Reduced Energy Costs
CE Certified Product
Robust Industrial Design

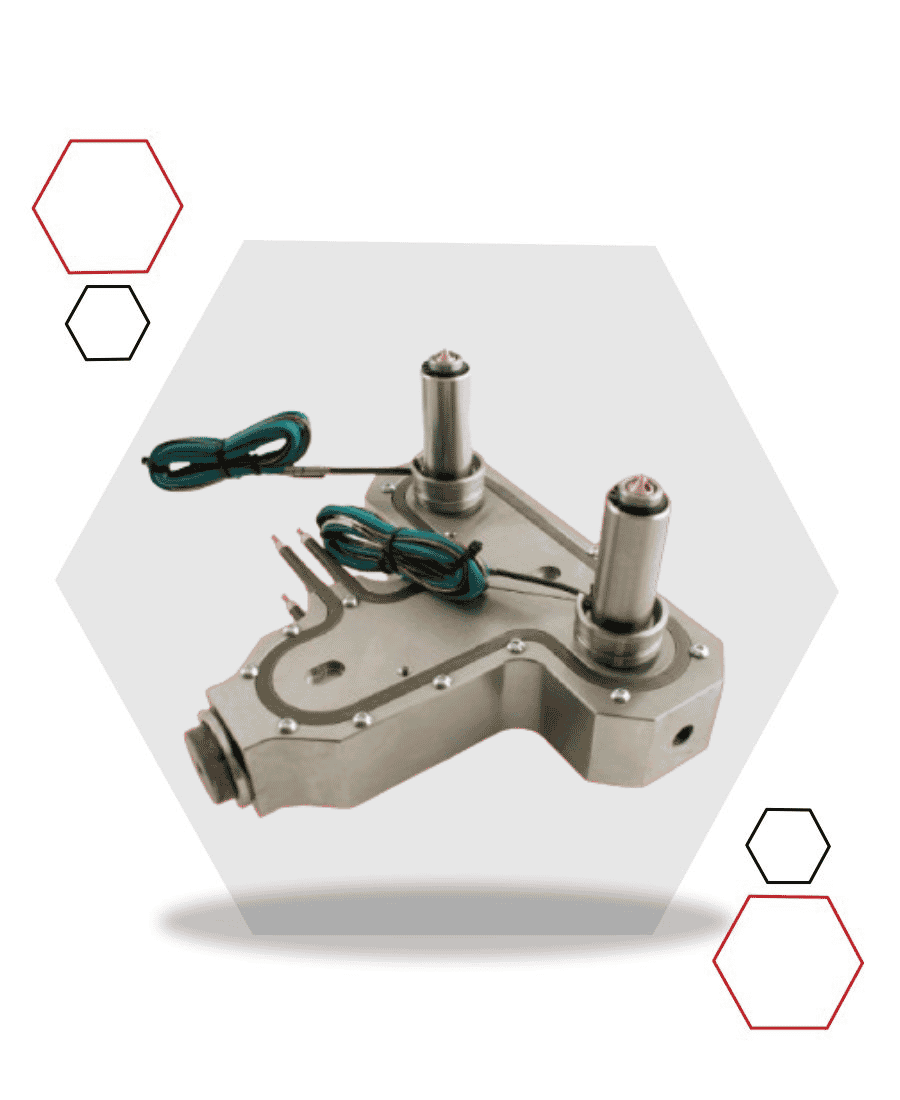

Hot Runner Systems

Injection Moulding

Radiant Surface Heating

Packaging Machinery

Engineering Industries

Plastic Processing Systems

Minimum Diameter

6 mm

Diameter Tolerance

± 0.07 mm

Length Tolerance

± 1%

Cold Length

38 mm

Resistance

+10% / -5%

Insulation Resistance

5 MΩ @ 500V DC
Standard Sizes

Technical Highlights

Maximum Temperature

550°C

Voltage Range

110-480V

Watt Density

7W/mm²

HV Test

1000 VAC
Standard Sizes

6.5mm Diameter Heater (230V)

Length (mm) Wattage (W)
300 350
350 400
400 500
450 600
500 650
550 700
600 800
650 850
700 900
750 1000
800 1100
850 1200
900 1300
950 1350
1000 1400
Standard Sizes

8 / 8.2 / 8.5 mm Diameter Heater with Threaded Pins M2.5 & M4 (230V)

Length (mm) Wattage (W)
400 800
450 900
500 1000
550 1150
600 1250
650 1400
700 1500
750 1600
800 1750
850 1850
900 1950
950 2100
1000 2200
1050 2300
1100 2450
1150 2550
1200 2650
1250 2800
1300 2900
1350 3000
1400 3150
1450 3250
1500 3350

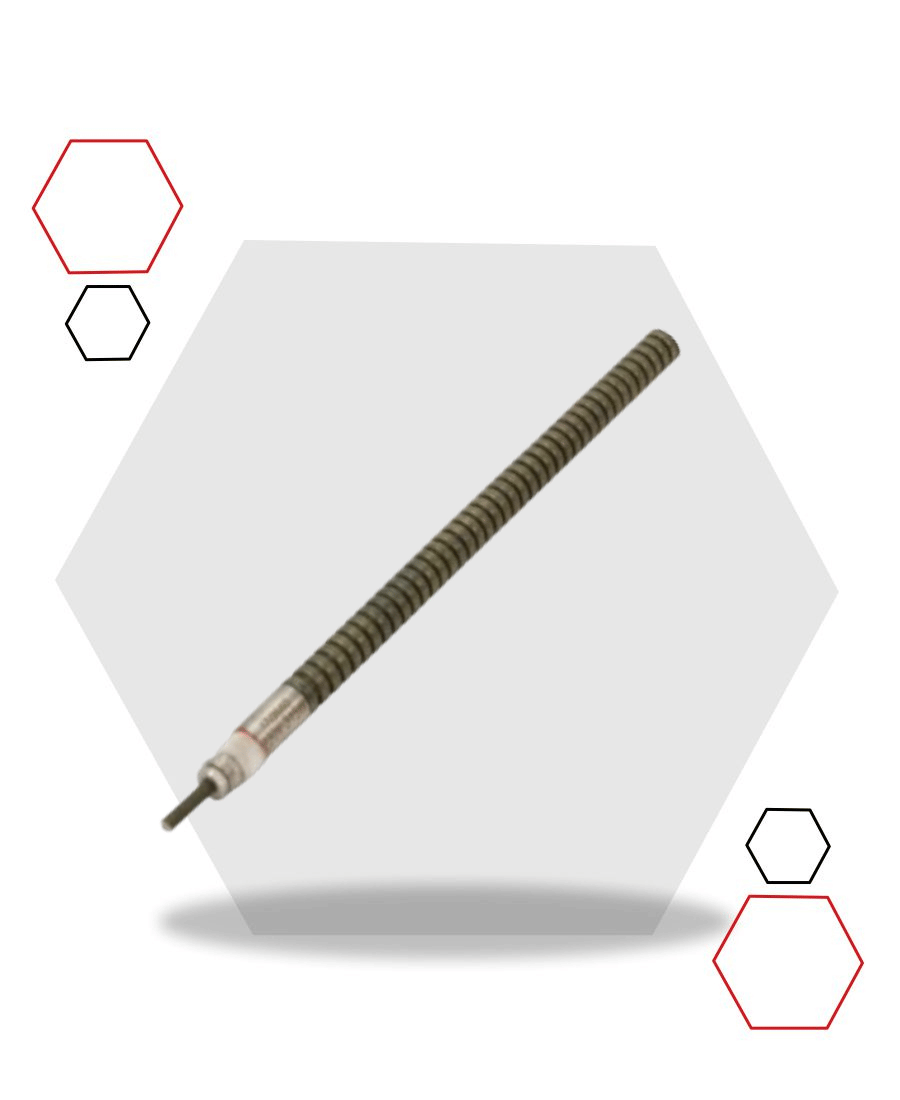

Product Image

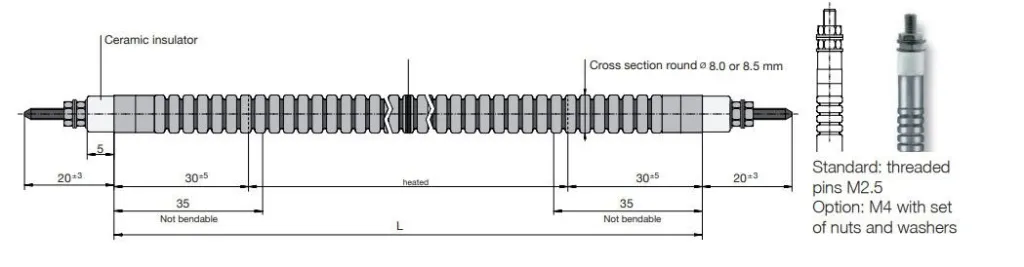

Manifold Flexible Heater

Manifold Flexible Heater
