Industrial Infrared Heating Solutions

Infrared Heaters – Short Wave

Short Wave Infrared Heaters deliver rapid, high-intensity radiant heating through electromagnetic energy transfer at the speed of light. Operating at temperatures up to 2300°C and converting approximately 92% of input energy into usable heat, these heaters provide instant response, precise heating control, and exceptional efficiency for industrial drying, curing, thermoforming, coating, printing, and PET preform heating applications. Their compact design, high watt density, and focused heat output make them ideal for demanding industrial processes requiring fast and uniform heating performance. Engineered for continuous industrial operation, these heaters ensure consistent thermal output with minimal energy loss. Their ability to deliver concentrated heat directly to the target surface significantly reduces process times and improves production efficiency.

2300°C Operating Temperature
92% Heat Efficiency
6000 Hrs Lamp Life
200W/Inch Heating Rate

Short Wave Infrared Heaters transfer energy directly through electromagnetic radiation at the speed of light without requiring physical contact with the material. Operating at temperatures around 2300°C, these heaters emit high-intensity infrared energy capable of penetrating surfaces rapidly and efficiently. The technology enables extremely fast heating cycles, accurate process control, focused heat application, and minimal energy losses, making it ideal for modern industrial drying, curing, forming, and heating operations.

Instant Heat Transfer

Delivers high-intensity infrared energy at the speed of light, enabling rapid heating without direct contact with the material.

High Energy Efficiency

Operates at approximately 2300°C and converts up to 92% of electrical energy into usable radiant heat.

Industrial Performance

Provides heating rates up to 200W per inch, making it ideal for demanding industrial drying, curing, and forming processes.

Ultra Fast Heating Response
2300°C Operating Temperature
92% Heat Energy Output
Short Wave Infrared Technology
6000 Hours Rated Life
Focused Heating Zone
Non-Contact Heating
Industrial Grade Construction

PET Preform Heating

Powder Coating Curing

Resin Hardening

Rubber Coating Drying

Paint & Varnish Drying

Printing Ink Drying

Paper Industry Humidity Control

Electronic Wafer Heating

Adhesive End Polymerization

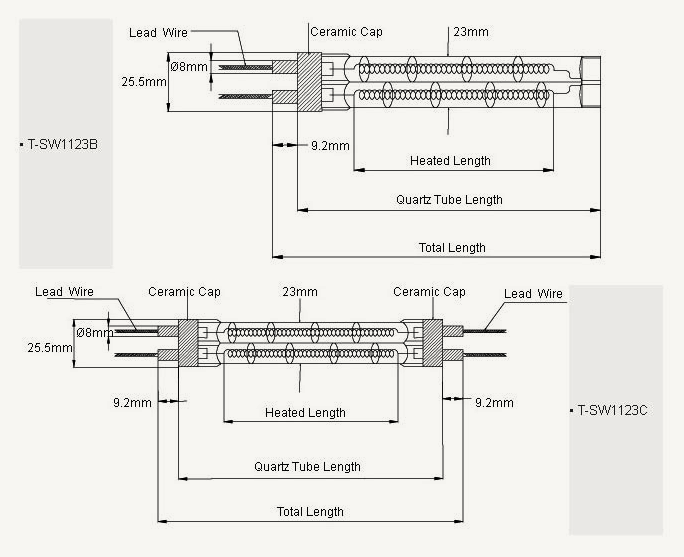

Technical Data

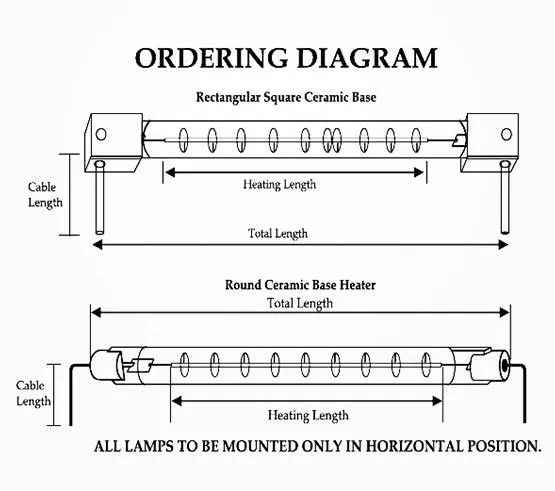

Standard Sizes Available

Heated Length HL (mm) Overall Length OL (mm) Wattage (W) Voltage (V)
127 212 500 240
254 348 1000 240
406 500 1600 240
406 500 1600 415
508 626 2000 240
508 626 2000 415
635 728 2500 415
508 626 3000 240
765 875 3000 415
1020 1120 2000 240
